Intel PBA G35316-601

Discussion in 'RAID Controllers and Host Bus Adapters' started by asturmas, Oct 30, 2016.

  1. asturmas

    asturmas New Member

    Joined:
    Oct 30, 2016
    Messages:
    9
    Likes Received:
    1
    Hello,
    I have see on a server deal a "Intel PBA G35316-601Dual Port S6I SAS Riser Card" but cant find any documentation to determine what this card is and dont know if is a simple HBA or real RAID Card.
    We have found a listing in ebay with this controller and LSI battery (Intel PBA G35316-601 Dual Port S6I SAS Riser Card 6Gb/s PCIe SATA with Battery | eBay) so i think this is a rebranded LSI controller but what?

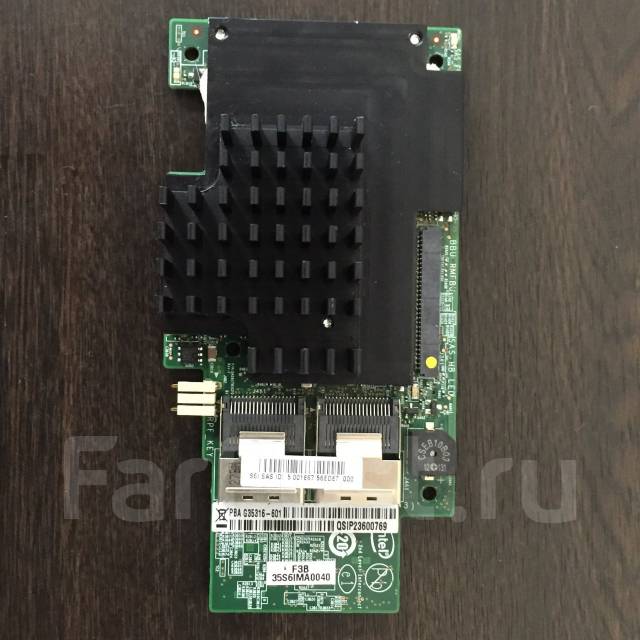

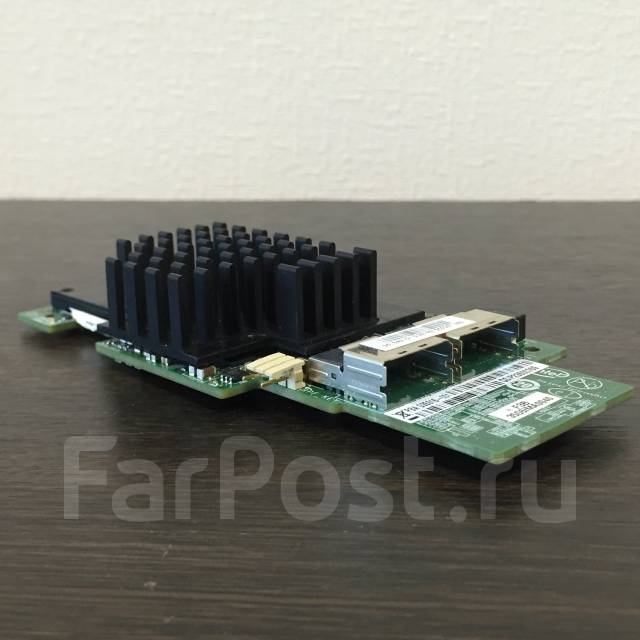

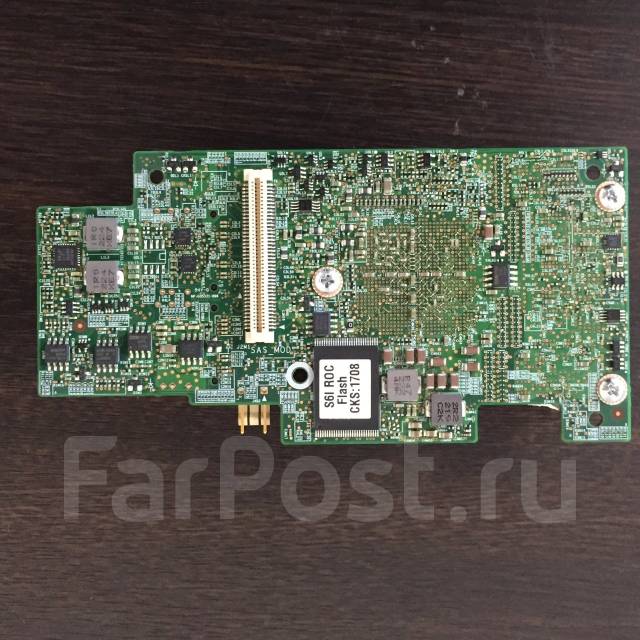

    Some photos:
    http://static.baza.farpost.ru/v/1466514413432_bulletin
    http://static.baza.farpost.ru/v/1466514422335_bulletin
    http://static.baza.farpost.ru/v/1466514432321_bulletin

    Thanks,

    #1
  2. xnoodle

    xnoodle Active Member

    Joined:
    Jan 4, 2011
    Messages:
    259
    Likes Received:
    48
    It's a LSI 2208 that can do 0/1/10/5/50/6/60.

    RMS25CB080 is the model

    However, you need a Intel server board, as it uses their SIOM connector.

    See page 3 of the slides here -- this card goes flush and parallel on the board, so you can use it without a riser in a 1u.

    IntelĀ® Integrated RAID Module RMS25CB and RMT3CB Family: Brief

    #2
  3. asturmas

    asturmas New Member

    Joined:
    Oct 30, 2016
    Messages:
    9
    Likes Received:
    1
    Card is on Intel server so no problem.
    So it's a lsi 9271-8i for Intel boards?

    #3
