I MIGHT HAVE UNDERESTIMATED....
- Thread starter oddssodds
- Start date
Notice: Page may contain affiliate links for which we may earn a small commission through services like Amazon Affiliates or Skimlinks.
So, as it turns out, the replacement mobo I bought was completely dead when I got it home. Thought there was something wrong with the MCP2221a so I loaded up a processor and ram..... nothing.
The shop I bought from is pretty reputable and said they tested the board before pulling it. No way it was dead. Took it back down and they couldn't get it to start either.
They bench tested another unit in front of me and off I went.
All vrm programming went smooth. Bios and firmware updated. Ready to swap back in and finish this thing.
On a side note, they asked what processors I was using. They asked if I would like to see the heatsinks that went with them.
Apparently they aren't a standard part number
The shop I bought from is pretty reputable and said they tested the board before pulling it. No way it was dead. Took it back down and they couldn't get it to start either.
They bench tested another unit in front of me and off I went.
All vrm programming went smooth. Bios and firmware updated. Ready to swap back in and finish this thing.
On a side note, they asked what processors I was using. They asked if I would like to see the heatsinks that went with them.
Apparently they aren't a standard part number
Well, if it wasn't for bad luck.....
1st board = JUNK
2nd board = DEAD
3rd board = PERFECT
Loaded firmware (check)
updated bios (check)
unlocked VRM (check)
hours of component swap (check)
except....
The 2020 board has bigger capacitors and when you remove the blue cpu clips, sometimes they are in the way
1st board = JUNK
2nd board = DEAD
3rd board = PERFECT
Loaded firmware (check)
updated bios (check)
unlocked VRM (check)
hours of component swap (check)
except....
The 2020 board has bigger capacitors and when you remove the blue cpu clips, sometimes they are in the way
Had to remove a switch on the front control panel and it was more stubborn than I thought. I am more worried about getting it back on. As a surface mount component, you have to presolder the pads, heat up and flow them without destroying all the components around it. No experience with that. I'm about to get some though.
Luckily I bought all the correct rosins for the job previously.
No one is going to be able to say I didn't work for this build
So, I think I fixed the capacitor. I couldn't get it to lie down flush to the board, but I am pretty sure I got it connected.
So I assembled everything and primed the water loop.
Started the machine and everything came on. I forgot to put the fan spoofers on. Then I see water leaking out the back lower part of the motherboard. I jump to the front and can't see any leaks. I then see what looks like water pouring over the lower ram. I immediately pull the power.

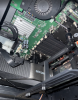

I look at the ram, but it appears to be dry. I can't find any evidence of a leak at any joint. Below the ram there is a little puddle of liquid here
There is no continued leak. I try to plug the machine back in and the frosted plastic loop by the plug is flashing orange.
Still not any evidence of a leak anywhere.
So I assembled everything and primed the water loop.
Started the machine and everything came on. I forgot to put the fan spoofers on. Then I see water leaking out the back lower part of the motherboard. I jump to the front and can't see any leaks. I then see what looks like water pouring over the lower ram. I immediately pull the power.
I look at the ram, but it appears to be dry. I can't find any evidence of a leak at any joint. Below the ram there is a little puddle of liquid here
There is no continued leak. I try to plug the machine back in and the frosted plastic loop by the plug is flashing orange.
Still not any evidence of a leak anywhere.
Last edited:
So before bed last night I decided to pull the ram, to see if I was hallucinating about coolant pouring over the ram.
All ram sticks below the top water block wet. Going to spray them down with alcohol and blow them out with the compressor
I have to pull the lower water block, don't I??
All ram sticks below the top water block wet. Going to spray them down with alcohol and blow them out with the compressor
I have to pull the lower water block, don't I??
@RolloZ170 The power supply is in overload. Once I get everything cleaned and dried, how do I kick it out of overload?
Last edited:
It only went into "orange light at plug" mode after all the ram connections were wet
nothing mentioning ram, but I pulled the plug the second i saw the water pour over the ram.
That was yesterday. I have since cleaned all the slots and ram with alcohol and blown them out. I also removed and sprayed under lower cpu
I think the psu error is a leftover from when I tried to restart the system yesterday with the ram wet.
